Sale price$229.00

Product Highlights

  • Working Range: 360 Degrees
  • Scanning Frequency: 5-15Hz
  • Distance Range: 0.2 - 12m
  • Angular Resolution: 0.225°

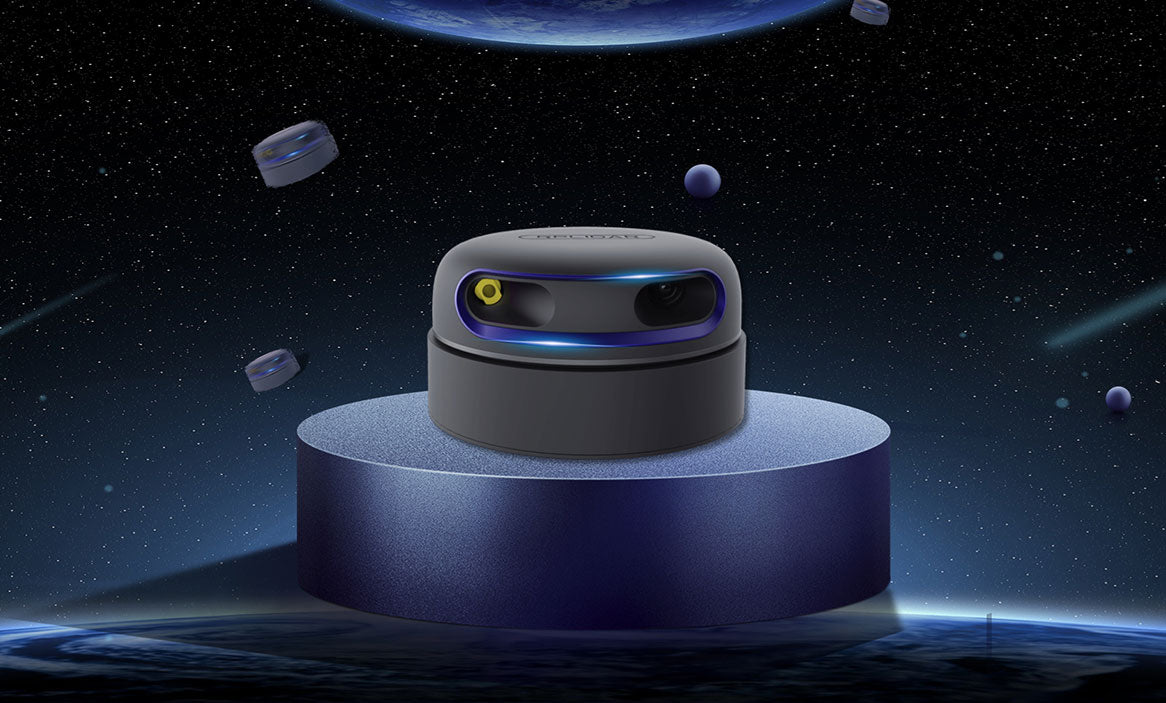

360° Full-scan

The RPLIDAR A2 utilizes a ranging that rotates clockwise, enabling 360° full-scan detection of the surrounding environment and producing a map of the area.

Comparison Under Different Conditions

The sample rate of LIDAR directly decides whether the robot can map quickly and accurately. RPLIDAR A2 improves the internal optical design and algorithm system to make the sample rate up to 8000 times/second.

Up to 16m Range Radius

With algorithm optimization, RPLIDAR A2 improves the range radius to 16 meters, which will provide more data due to a larger outline map.

New Non-Contact Motor

RPLIDAR A2 uses a self-designed brushless motor to reduce mechanical friction while running as compared to the conventional belt drive mode. As a result, the RPLIDAR A2 can operate quietly without interruption.

OPTMAG Original Design

The majority of conventional non-solid LIDARs use slip rings to transmit power and data, however they only have a lifespan of a few thousand hours owing to mechanical wear. SLAMTEC has integrated the wireless power and optical communication technology to create its own OPTMAG technology, which overcome the lifespan of traditional LIDAR system. It fixes the electrical connection failure caused by the physical wearing out so as to prolong the lifespan.

Five Years Ultra-long Life

The RPLIDAR will operate for 24/7 for five years with a brushless motor and OPTMAG technology.

4cm Ultra-thin

The RPLIDAR A2 maintains its exceptional performance while cutting the thickness to only 4 cm thanks to the specially developed custom parts and the properly thought out internal mechanical system. It is ideal for all kinds of service robot.

CLASS 1 Laser Safety Standard

Using a modulated pulse type low-power infrared laser emitting light source, RPLIDAR A2 meets the Class 1 laser safety standard. The laser emits light in a very short time frame which can ensure its safety to human and pets.

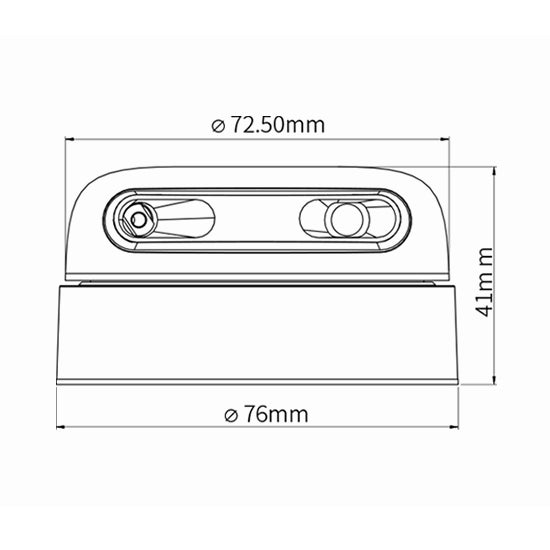

Height: 41mm Width: 76mm Weight: 190g


User Manual
